3FS 集群部署笔记

一、3FS 介绍

3FS (Fire-Flyer File System) 是一款高性能分布式文件系统。本文详细介绍了在 CentOS 8.5 环境下，从依赖安装、编译配置到集群部署的全过程，包括 Soft-RoCE 模拟 RDMA、FoundationDB 和 ClickHouse 的配置，以及存储拓扑和客户端挂载。适用于开发者快速搭建高性能存储集群。

3FS (Fire-Flyer File System) 项目仓库: https://github.com/deepseek-ai/3FS 。

二、编译安装

为了支持多种运行环境的编译安装，3FS 提供了一些 Dockerfile 可供参考。

2.1、安装依赖软件

本测试环境使用的系统版本是 CentOS 8.5.2111 ，是比较老的系统版本，为了能够顺利编译安装 3FS ，需要安装一些依赖软件。

这里是在每台需要运行 3FS 的机器上执行下面的编译安装命令。

/etc/yum.repos.d/centos-all.repo 文件内容:

[appstream]
name=CentOS-8.5.2111 - AppStream - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/centos-vault/8.5.2111/AppStream/$basearch/os/
        https://mirrors.tuna.tsinghua.edu.cn/centos-vault/8.5.2111/AppStream/$basearch/os/
        https://mirrors.ustc.edu.cn/centos-vault/8.5.2111/AppStream/$basearch/os/
enabled=1
gpgcheck=0
priority=1

[baseos]
name=CentOS-8.5.2111 - BaseOS - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/centos-vault/8.5.2111/BaseOS/$basearch/os/
        https://mirrors.tuna.tsinghua.edu.cn/centos-vault/8.5.2111/BaseOS/$basearch/os/
        https://mirrors.ustc.edu.cn/centos-vault/8.5.2111/BaseOS/$basearch/os/
enabled=1
gpgcheck=0
priority=1

[cr]
name=CentOS-8.5.2111 - ContinuousRelease - aliyun
baseurl=https://mirrors.aliyun.com/centos-vault/8.5.2111/cr/$basearch/os/
        https://mirrors.tuna.tsinghua.edu.cn/centos-vault/8.5.2111/cr/$basearch/os/
        https://mirrors.ustc.edu.cn/centos-vault/8.5.2111/cr/$basearch/os/
enabled=0
gpgcheck=0
priority=1

[debuginfo]
name=CentOS-8.5.2111 - Debuginfo - aliyun
baseurl=https://mirrors.aliyun.com/centos-debuginfo/8/$basearch/
enabled=0
gpgcheck=0
priority=1

[devel]
name=CentOS-8.5.2111 - Devel - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/centos-vault/8.5.2111/Devel/$basearch/os/
        https://mirrors.tuna.tsinghua.edu.cn/centos-vault/8.5.2111/Devel/$basearch/os/
        https://mirrors.ustc.edu.cn/centos-vault/8.5.2111/Devel/$basearch/os/
enabled=0
gpgcheck=0
priority=1

[extras]
name=CentOS-8.5.2111 - Extras - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/centos-vault/8.5.2111/extras/$basearch/os/
        https://mirrors.tuna.tsinghua.edu.cn/centos-vault/8.5.2111/extras/$basearch/os/
        https://mirrors.ustc.edu.cn/centos-vault/8.5.2111/extras/$basearch/os/
enabled=1
gpgcheck=0
priority=1

[fasttrack]
name=CentOS-8.5.2111 - FastTrack - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/centos-vault/8.5.2111/fasttrack/$basearch/os/
        https://mirrors.tuna.tsinghua.edu.cn/centos-vault/8.5.2111/fasttrack/$basearch/os/
        https://mirrors.ustc.edu.cn/centos-vault/8.5.2111/fasttrack/$basearch/os/
enabled=0
gpgcheck=0
priority=1

[ha]
name=CentOS-8.5.2111 - HighAvailability - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/centos-vault/8.5.2111/HighAvailability/$basearch/os/
        https://mirrors.tuna.tsinghua.edu.cn/centos-vault/8.5.2111/HighAvailability/$basearch/os/
        https://mirrors.ustc.edu.cn/centos-vault/8.5.2111/HighAvailability/$basearch/os/
enabled=0
gpgcheck=0
priority=1

[plus]
name=CentOS-8.5.2111 - Plus - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/centos-vault/8.5.2111/centosplus/$basearch/os/
        https://mirrors.tuna.tsinghua.edu.cn/centos-vault/8.5.2111/centosplus/$basearch/os/
        https://mirrors.ustc.edu.cn/centos-vault/8.5.2111/centosplus/$basearch/os/
enabled=0
gpgcheck=0
priority=1

[powertools]
name=CentOS-8.5.2111 - PowerTools - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/centos-vault/8.5.2111/PowerTools/$basearch/os/
        https://mirrors.tuna.tsinghua.edu.cn/centos-vault/8.5.2111/PowerTools/$basearch/os/
        https://mirrors.ustc.edu.cn/centos-vault/8.5.2111/PowerTools/$basearch/os/
enabled=1
gpgcheck=0
priority=1

[baseos-source]
name=CentOS-8.5.2111 - BaseOS-Source - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/centos-vault/8.5.2111/BaseOS/$basearch/Source/
        https://mirrors.tuna.tsinghua.edu.cn/centos-vault/8.5.2111/BaseOS/$basearch/Source/
        https://mirrors.ustc.edu.cn/centos-vault/8.5.2111/BaseOS/$basearch/Source/
enabled=0
gpgcheck=0
priority=1

[appstream-source]
name=CentOS-8.5.2111 - AppStream-Source - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/centos-vault/8.5.2111/AppStream/Source/
        https://mirrors.tuna.tsinghua.edu.cn/centos-vault/8.5.2111/AppStream/Source/
        https://mirrors.ustc.edu.cn/centos-vault/8.5.2111/AppStream/Source/
enabled=0
gpgcheck=0
priority=1

[extras-source]
name=CentOS-8.5.2111 - Extras-Source - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/centos-vault/8.5.2111/extras/Source/
        https://mirrors.tuna.tsinghua.edu.cn/centos-vault/8.5.2111/extras/Source/
        https://mirrors.ustc.edu.cn/centos-vault/8.5.2111/extras/Source/
enabled=0
gpgcheck=0
priority=1

[plus-source]
name=CentOS-8.5.2111 - Plus-Source - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/centos-vault/8.5.2111/centosplus/Source/
        https://mirrors.tuna.tsinghua.edu.cn/centos-vault/8.5.2111/centosplus/Source/
        https://mirrors.ustc.edu.cn/centos-vault/8.5.2111/centosplus/Source/
enabled=0
gpgcheck=0
priority=1

/etc/yum.repos.d/centos-epel-all.repo 文件内容:

[epel-modular]
name=CentOS-8-EPEL - EPEL-Modular - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/epel/$releasever/Modular/$basearch
        https://mirrors.tuna.tsinghua.edu.cn/epel/$releasever/Modular/$basearch
        https://mirrors.ustc.edu.cn/epel/$releasever/Modular/$basearch
enabled=1
gpgcheck=0
priority=1

[epel-modular-debuginfo]
name=CentOS-8-EPEL - EPEL-Modular-DebugInfo - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/epel/$releasever/Modular/$basearch/debug
        https://mirrors.tuna.tsinghua.edu.cn/epel/$releasever/Modular/$basearch/debug
        https://mirrors.ustc.edu.cn/epel/$releasever/Modular/$basearch/debug
enabled=0
gpgcheck=0
priority=1

[epel-modular-source]
name=CentOS-8-EPEL - EPEL-Modular-Source - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/epel/$releasever/Modular/SRPMS
        https://mirrors.tuna.tsinghua.edu.cn/epel/$releasever/Modular/SRPMS
        https://mirrors.ustc.edu.cn/epel/$releasever/Modular/SRPMS
enabled=0
gpgcheck=0
priority=1

[epel-testing-modular]
name=CentOS-8-EPEL - EPEL-Testing-Modular - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/epel/testing/$releasever/Modular/$basearch
        https://mirrors.tuna.tsinghua.edu.cn/epel/testing/$releasever/Modular/$basearch
        https://mirrors.ustc.edu.cn/epel/testing/$releasever/Modular/$basearch
enabled=0
gpgcheck=0
priority=1

[epel-testing-modular-debuginfo]
name=CentOS-8-EPEL - EPEL-Testing-Modular-DebugInfo - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/epel/testing/$releasever/Modular/$basearch/debug
        https://mirrors.tuna.tsinghua.edu.cn/epel/testing/$releasever/Modular/$basearch/debug
        https://mirrors.ustc.edu.cn/epel/testing/$releasever/Modular/$basearch/debug
enabled=0
gpgcheck=0
priority=1

[epel-testing-modular-source]
name=CentOS-8-EPEL - EPEL-Testing-Modular-Source - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/epel/testing/$releasever/Modular/SRPMS
        https://mirrors.tuna.tsinghua.edu.cn/epel/testing/$releasever/Modular/SRPMS
        https://mirrors.ustc.edu.cn/epel/testing/$releasever/Modular/SRPMS
enabled=0
gpgcheck=0
priority=1

[epel-testing]
name=CentOS-8-EPEL - EPEL-Testing - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/epel/testing/$releasever/Everything/$basearch
        https://mirrors.tuna.tsinghua.edu.cn/epel/testing/$releasever/Everything/$basearch
        https://mirrors.ustc.edu.cn/epel/testing/$releasever/Everything/$basearch
enabled=0
gpgcheck=0
priority=1

[epel-testing-debuginfo]
name=CentOS-8-EPEL - EPEL-Testing-DebugInfo - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/epel/testing/$releasever/Everything/$basearch/debug
        https://mirrors.tuna.tsinghua.edu.cn/epel/testing/$releasever/Everything/$basearch/debug
        https://mirrors.ustc.edu.cn/epel/testing/$releasever/Everything/$basearch/debug
enabled=0
gpgcheck=0
priority=1

[epel-testing-source]
name=CentOS-8-EPEL - EPEL-Testing-Source - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/epel/testing/$releasever/Everything/SRPMS
        https://mirrors.tuna.tsinghua.edu.cn/epel/testing/$releasever/Everything/SRPMS
        https://mirrors.ustc.edu.cn/epel/testing/$releasever/Everything/SRPMS
enabled=0
gpgcheck=0
priority=1

[epel]
name=CentOS-8-EPEL - EPEL - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/epel/$releasever/Everything/$basearch
        https://mirrors.tuna.tsinghua.edu.cn/epel/$releasever/Everything/$basearch
        https://mirrors.ustc.edu.cn/epel/$releasever/Everything/$basearch
enabled=1
gpgcheck=0
priority=1

[epel-debuginfo]
name=CentOS-8-EPEL - EPEL-Debug - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/epel/$releasever/Everything/$basearch/debug
        https://mirrors.tuna.tsinghua.edu.cn/epel/$releasever/Everything/$basearch/debug
        https://mirrors.ustc.edu.cn/epel/$releasever/Everything/$basearch/debug
enabled=0
gpgcheck=0
priority=1

[epel-source]
name=CentOS-8-EPEL - EPEL-Source - aliyun,tsinghua,ustc
baseurl=https://mirrors.aliyun.com/epel/$releasever/Everything/SRPMS
        https://mirrors.tuna.tsinghua.edu.cn/epel/$releasever/Everything/SRPMS
        https://mirrors.ustc.edu.cn/epel/$releasever/Everything/SRPMS
enabled=0
gpgcheck=0
priority=1

环境初始化相关命令:

# 备份并替换 repo 配置
mkdir -p /root/3fs/oldrepo
mv /etc/yum.repos.d/* /root/3fs/oldrepo/
vi /etc/yum.repos.d/centos-all.repo
vi /etc/yum.repos.d/centos-epel-all.repo

# 安装依赖软件
dnf clean all
dnf reinstall -y epel-release
rm -rf /etc/yum.repos.d/epel*
dnf install -y wget git meson cmake cargo perl lld gcc gcc-c++ autoconf
               lz4 lz4-devel xz xz-devel double-conversion-devel libdwarf-devel \
               libunwind-devel libaio-devel libuv-devel gmock-devel gperftools \
               gperftools-devel openssl-devel boost1.78 boost1.78-devel mono-devel \
               libevent-devel libibverbs-devel numactl-devel python3-devel bzip2-devel \
               libzstd-devel snappy-devel libsodium-devel libatomic gcc-toolset-11 \
               gcc-toolset-11-elfutils-devel gtest gtest-devel gcc-toolset-11-libatomic-devel
dnf reinstall -y kernel-headers glibc-headers
dnf remove -y fuse fuse-libs gflags gflags-devel glog glog-devel
dnf clean all

# 配置 gcc11 环境
ln -s /opt/rh/gcc-toolset-11/root/usr/libexec/gcc/x86_64-redhat-linux/11 /usr/libexec/gcc/x86_64-redhat-linux/11
ln -s /opt/rh/gcc-toolset-11/root/usr/lib/gcc/x86_64-redhat-linux/11 /usr/lib/gcc/x86_64-redhat-linux/11
ln -s /opt/rh/gcc-toolset-11/root/usr/include/c++/11 /usr/include/c++/11
echo "source /opt/rh/gcc-toolset-11/enable" >> /root/.bashrc
echo "export PATH=/opt/rh/gcc-toolset-11/root/usr/bin:\$PATH" >> /root/.bashrc
source /root/.bashrc

# 安装 fuse
mkdir -p /root/3fs/fuse
cd /root/3fs/fuse
wget https://github.com/libfuse/libfuse/releases/download/fuse-3.16.2/fuse-3.16.2.tar.gz
tar -zxf fuse-3.16.2.tar.gz
cd fuse-3.16.2
mkdir build
cd build
meson setup ..
meson configure -D default_library=both
meson setup --reconfigure ../
ninja
ninja install

# 安装 foundationdb
mkdir -p /root/3fs/foundationdb
cd /root/3fs/foundationdb
wget https://github.com/apple/foundationdb/releases/download/7.3.63/foundationdb-clients-7.3.63-1.el7.x86_64.rpm
wget https://github.com/apple/foundationdb/releases/download/7.3.63/foundationdb-server-7.3.63-1.el7.x86_64.rpm
rpm -ivh foundationdb-clients-7.3.63-1.el7.x86_64.rpm
rpm -ivh foundationdb-server-7.3.63-1.el7.x86_64.rpm

# 安装 clang14
mkdir -p /root/3fs/clang
cd /root/3fs/clang
wget https://github.com/llvm/llvm-project/releases/download/llvmorg-14.0.6/clang+llvm-14.0.6-x86_64-linux-gnu-rhel-8.4.tar.xz
tar -xf clang+llvm-14.0.6-x86_64-linux-gnu-rhel-8.4.tar.xz
mv clang+llvm-14.0.6-x86_64-linux-gnu-rhel-8.4 /usr/local/clang-llvm-14
ln -s /usr/local/clang-llvm-14/bin/clang++ /usr/local/clang-llvm-14/bin/clang++-14
ln -s /usr/local/clang-llvm-14/bin/clang-tidy /usr/local/clang-llvm-14/bin/clang-tidy-14
ln -s /usr/local/clang-llvm-14/bin/clang-format /usr/local/clang-llvm-14/bin/clang-format-14
ln -s /usr/local/clang-llvm-14/bin/clang-format /usr/bin/clang-format-14
echo "export PATH=\$PATH:/usr/local/clang-llvm-14/bin" >> /root/.bashrc

# 安装 rust
export RUSTUP_UPDATE_ROOT=https://mirrors.ustc.edu.cn/rust-static/rustup
export RUSTUP_DIST_SERVER=https://mirrors.ustc.edu.cn/rust-static
curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh -s -- -y
. "/root/.cargo/env"

# 安装 gflags
mkdir -p /root/3fs/gflags
cd /root/3fs/gflags
wget https://mirrors.aliyun.com/centos/8-stream/PowerTools/x86_64/os/Packages/gflags-2.2.2-1.el8.x86_64.rpm
wget https://mirrors.aliyun.com/centos/8-stream/PowerTools/x86_64/os/Packages/gflags-devel-2.2.2-1.el8.x86_64.rpm
rpm -ivh gflags-2.2.2-1.el8.x86_64.rpm
rpm -ivh gflags-devel-2.2.2-1.el8.x86_64.rpm
wget https://github.com/google/glog/archive/refs/tags/v0.4.0.tar.gz
tar -zxvf v0.4.0.tar.gz
cd glog-0.4.0
cmake -S . -B build -DCMAKE_INSTALL_PREFIX=/usr -DBUILD_SHARED_LIBS=ON
cmake --build build --target install

2.2、编译 3FS

本次编译指定了我使用的编译版本，以便于你来复现我的操作，当然你也可以尝试编译编译最新的代码。

注意: 你可以选择一台机器编译，然后将编译产物传输到其他机器中，但是你需要确保这一批机器的操作系统和硬件配置保持一致，否则可能会出现编译后的产物在其他机器上运行失败的问题（比如由于机器的指令集不同导致无法运行）。

相关命令:

mkdir -p /root/3fs
cd /root/3fs
git clone https://github.com/deepseek-ai/3FS.git
cd 3FS
git checkout -f ee9a5cee0a85c64f4797bf380257350ca1becd36
git submodule update --init --recursive
./patches/apply.sh
cargo build --release
cmake -S . -B build -DCMAKE_CXX_COMPILER=clang++-14 -DCMAKE_C_COMPILER=clang-14 -DCMAKE_BUILD_TYPE=RelWithDebInfo -DCMAKE_EXPORT_COMPILE_COMMANDS=ON
cmake --build build -j 32

三、初始化运行环境

机器节点信息:

机器	IP	相关组件
host01	10.10.10.1	Soft-RoCE, FoundationDB Server, ClickHouse Server
host02	10.10.10.2	Soft-RoCE
host03	10.10.10.3	Soft-RoCE

3.1、配置 Soft-RoCE 环境

由于测试环境无 RDMA 硬件网卡设备，所以我们需要配置 Soft-RoCE 来模拟 RDMA 网络。上述三台机器上都需要配置 Soft-RoCE 环境。

相关命令:

# 安装依赖软件
dnf -y install iproute libibverbs libibverbs-utils infiniband-diags perftest

# 加载内核驱动
lsmod | grep rdma
modprobe rdma_rxe

# 新增 rdma 网卡
# 其中 rxe_0 是新增的 rdma 设备名， ens1 为 Soft-RoCE 设备所绑定的网络设备名
rdma link add rxe0 type rxe netdev ens1
rdma link show

# 列出 rdma 设备
ibv_devices

# 显示 ib 状态
ibstat
ibstatus


# rdma 带宽测试，工具来自于 perftest
# 服务器
ib_send_bw -a -n 1000000 -c RC -d rxe0 -q 10 -i 1
# 客户端
ib_send_bw -a -n 1000000 -c RC -d rxe0 -q 10 -i 1 10.10.10.1

# rdma 延迟测试，工具来自于 perftest
# 服务器
ib_send_lat -a -d mlx5_bond_0 -F -n 1000 -p 18515
# 客户端
ib_send_lat -a -d mlx5_bond_0 10.10.10.1 -F -n 1000 -p 18515

3.2、配置 FoundationDB

修改 10.10.10.1 上的 FoundationDB Server 监听端口。

相关命令:

# 安装 FoundationDB (如果之前没有安装)
mkdir -p /root/3fs/foundationdb
cd /root/3fs/foundationdb
wget https://github.com/apple/foundationdb/releases/download/7.3.63/foundationdb-clients-7.3.63-1.el7.x86_64.rpm
wget https://github.com/apple/foundationdb/releases/download/7.3.63/foundationdb-server-7.3.63-1.el7.x86_64.rpm
rpm -ivh foundationdb-clients-7.3.63-1.el7.x86_64.rpm
rpm -ivh foundationdb-server-7.3.63-1.el7.x86_64.rpm
ll /usr/lib64/libfdb_c.so

# 修改 fdb server 监听端口
cat /etc/foundationdb/fdb.cluster
vi /etc/foundationdb/fdb.cluster

# 启动 fdb
systemctl start foundationdb.service
systemctl status foundationdb.service

# 停止 fdb
systemctl stop foundationdb.service

# 查看服务状态
fdbcli --exec "status details"

# 查询 fdb 中存储的数据
fdbcli --exec "getrange '' \xff"

# 清空 fdb 中存储的数据
# 如果安装步骤执行出错，会导致存储在 fdb 中数据异常，可能需要清空 fbd 数据后重新执行
# 也可以使用 fdbcli --exec "writemode on; clearrange '' \xff" 来清空数据
systemctl stop foundationdb.service
rm -rf /var/lib/foundationdb/data/*
systemctl start foundationdb.service
fdbcli --exec "configure new single ssd"

3.3、配置 ClickHouse

修改 10.10.10.1 上的 ClickHouse 配置，以允许远程连接。

相关命令:

# 安装 ClickHouse (如果之前没有安装)
dnf install -y yum-utils
yum-config-manager --add-repo https://packages.clickhouse.com/rpm/clickhouse.repo
dnf install -y clickhouse-server clickhouse-client

# 查看配置文件
ls -al /etc/clickhouse-server/

# 修改监听端口
ls -al /etc/clickhouse-server/config.xml
chmod 777 /etc/clickhouse-server/config.xml
# 编辑配置文件
# 取消其中 <listen_host>::</listen_host> 注释
# 修改其中 <tcp_port>39000</tcp_port> 为 39000
vi /etc/clickhouse-server/config.xml
chmod 400 /etc/clickhouse-server/config.xml

# 修改用户密码
ls -al /etc/clickhouse-server/users.xml
chmod 777 /etc/clickhouse-server/users.xml
# 编辑配置文件，在 <password></password> 中指定明文密码为 default123
vi /etc/clickhouse-server/users.xml
chmod 400 /etc/clickhouse-server/users.xml

# 启动服务
systemctl start clickhouse-server
systemctl enable clickhouse-server
systemctl status clickhouse-server

# 停止服务
systemctl stop clickhouse-server

# 初始化 3fs 库表结构
clickhouse-client --port 39000 --password default123 -n < /root/3fs/3FS/deploy/sql/3fs-monitor.sql

四、部署 3FS 集群

参考官方文档: deploy

机器节点信息:

机器	IP	组件角色
host01	10.10.10.1	monitor_collector, mgmtd, meta, storage
host02	10.10.10.2	storage
host03	10.10.10.3	storage, fuse_client

4.1、配置 monitor_collector

以下操作仅在 10.10.10.1 机器上执行。

相关命令:

# 初始化运行目录和文件
mkdir -p /opt/3fs/{bin,etc} /var/log/3fs
cp /root/3fs/3FS/build/bin/monitor_collector_main /opt/3fs/bin
cp /root/3fs/3FS/configs/monitor_collector_main.toml /opt/3fs/etc
cp /root/3fs/3FS/deploy/systemd/monitor_collector_main.service /usr/lib/systemd/system
ldd /opt/3fs/bin/monitor_collector_main

# 修改配置文件[开始]
# 修改其中的 [server.monitor_collector.reporter.clickhouse] 字段为 clickhouse 服务信息
vi /opt/3fs/etc/monitor_collector_main.toml
# 示例内容如下:
[server.monitor_collector.reporter.clickhouse]
db = '3fs'
host = '10.10.10.1'
user = 'default'
passwd = 'default123'
port = '39000'
# 修改配置文件[结束]

# 启动服务
systemctl start monitor_collector_main
systemctl status monitor_collector_main

# 停止服务
systemctl stop monitor_collector_main

4.2、配置 admin_cli

以下操作在所有部署机器上执行。

相关命令:

# 初始化本机运行目录和文件
mkdir -p /opt/3fs/{bin,etc} /var/log/3fs
cp /root/3fs/3FS/build/bin/admin_cli /opt/3fs/bin/
cp /root/3fs/3FS/configs/admin_cli.toml /opt/3fs/etc/
ldd /opt/3fs/bin/admin_cli
cp /etc/foundationdb/fdb.cluster /opt/3fs/etc/

# 从 10.10.10.1 中拉取 fdb 连接配置
scp root@10.10.10.1:/etc/foundationdb/fdb.cluster /opt/3fs/etc/

# 修改配置文件[开始]
vi /opt/3fs/etc/admin_cli.toml
# 修改示例内容如下: (以下仅展示修改的配置内容)
cluster_id = 'stage'

[fdb]
clusterFile = '/opt/3fs/etc/fdb.cluster'

[ib_devices]
# 注意: 由于 3fs 内部限制了本地 rdma 网卡数量，对应配置 kMaxDeviceCnt 为 4 , 因此实际部署环境中
#       存在多个 rdma 网卡可能会导致异常，我们可以通过 device_filter 参数来选择想要使用的网卡。
device_filter = ['rxe0']
# 修改配置文件[结束]

# 查看 admin_cli 命令
/opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml help

4.3、配置 mgmtd

以下操作仅在 10.10.10.1 机器上执行。

相关命令:

# 初始化本机运行目录和文件
mkdir -p /opt/3fs/{bin,etc} /var/log/3fs
cp /root/3fs/3FS/build/bin/mgmtd_main /opt/3fs/bin/
cp /root/3fs/3FS/configs/{mgmtd_main.toml,mgmtd_main_launcher.toml,mgmtd_main_app.toml} /opt/3fs/etc/
cp /root/3fs/3FS/deploy/systemd/mgmtd_main.service /usr/lib/systemd/system

# 修改配置文件
# 修改配置文件 mgmtd_main_app.toml [开始]
vi /opt/3fs/etc/mgmtd_main_app.toml
node_id = 1
# 修改配置文件 mgmtd_main_app.toml [结束]


# 修改配置文件 mgmtd_main_launcher.toml [开始]
vi /opt/3fs/etc/mgmtd_main_launcher.toml
cluster_id = 'stage'

[fdb]
clusterFile = '/opt/3fs/etc/fdb.cluster'
# 修改配置文件 mgmtd_main_launcher.toml [结束]


# 修改配置文件 mgmtd_main.toml [开始]
vi /opt/3fs/etc/mgmtd_main.toml
[common.monitor.reporters.monitor_collector]
remote_ip = "10.10.10.1:10000"
# 修改配置文件 mgmtd_main.toml [结束]

# 初始化集群
/opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml "init-cluster --mgmtd /opt/3fs/etc/mgmtd_main.toml 1 1048576 4"

# 启动服务
systemctl start mgmtd_main
systemctl status mgmtd_main

# 查看集群节点
/opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' "list-nodes"

初始化集群的参数解释:

• chaintableid : 这里参数为 1 。
• chunksize : 这里参数为 1048576 。
• stripesize : 这里参数为 4 。

相关输出信息:

[root@host01 data]# /opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml "init-cluster --mgmtd /opt/3fs/etc/mgmtd_main.toml 1 1048576 4"
> Execute init-cluster --mgmtd /opt/3fs/etc/mgmtd_main.toml 1 1048576 4
Init filesystem, root directory layout: chain table ChainTableId(1), chunksize 1048576, stripesize 4

Init config for MGMTD version 1
> Time: 41ms 220us 660ns

[root@host01 data]# /opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' "list-nodes"
> Execute list-nodes
Id  Type   Status         Hostname   Pid   Tags  LastHeartbeatTime  ConfigVersion  ReleaseVersion
1   MGMTD  PRIMARY_MGMTD  host01     6208  []    N/A                0(UPTODATE)    250523-dev-1-999999-ee9a5cee
> Time: 375ms 823us 249ns

4.4、配置 meta

以下操作仅在 10.10.10.1 机器上执行。

相关命令:

# 初始化本机运行目录和文件
mkdir -p /opt/3fs/{bin,etc} /var/log/3fs
cp /root/3fs/3FS/build/bin/meta_main /opt/3fs/bin
cp /root/3fs/3FS/configs/{meta_main_launcher.toml,meta_main.toml,meta_main_app.toml} /opt/3fs/etc
cp /root/3fs/3FS/deploy/systemd/meta_main.service /usr/lib/systemd/system
ldd /opt/3fs/bin/meta_main


# 修改配置文件
# 修改配置文件 meta_main_app.toml [开始]
vi /opt/3fs/etc/meta_main_app.toml
node_id = 100
# 修改配置文件 meta_main_app.toml [结束]


# 修改配置文件 meta_main_launcher.toml [开始]
vi /opt/3fs/etc/meta_main_launcher.toml
cluster_id = 'stage'

[mgmtd_client]
mgmtd_server_addresses = ["RDMA://10.10.10.1:8000"]
# 修改配置文件 meta_main_launcher.toml [结束]


# 修改配置文件 meta_main.toml [开始]
vi /opt/3fs/etc/meta_main.toml
[common.monitor.reporters.monitor_collector]
remote_ip = '10.10.10.1:10000'

[server.fdb]
clusterFile = '/opt/3fs/etc/fdb.cluster'

[server.mgmtd_client]
mgmtd_server_addresses = ["RDMA://10.10.10.1:8000"]
# 修改配置文件 meta_main.toml [结束]


# 上传 meta 配置
/opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' "set-config --type META --file /opt/3fs/etc/meta_main.toml"

# 启动服务
systemctl start meta_main
systemctl status meta_main

# 查看集群节点
/opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' "list-nodes"

相关输出信息:

[root@host01 data]# /opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' "set-config --type META --file /opt/3fs/etc/meta_main.toml"
> Execute set-config --type META --file /opt/3fs/etc/meta_main.toml
Succeed
ConfigVersion  1
> Time: 153ms 391us 74ns

4.5、配置 storage

这一步骤会在每台部署机器上格式化两个硬盘用作存储硬盘。以下操作在所有部署机器上执行。

相关命令:

# 初始化本机运行目录和文件
mkdir -p /opt/3fs/{bin,etc} /var/log/3fs
cp /root/3fs/3FS/build/bin/storage_main /opt/3fs/bin
cp /root/3fs/3FS/configs/{storage_main_launcher.toml,storage_main.toml,storage_main_app.toml} /opt/3fs/etc
cp /root/3fs/3FS/deploy/systemd/storage_main.service /usr/lib/systemd/system

# 修改配置文件
# 修改配置文件 storage_main_app.toml [开始]
# 由于是三台机器，所以这里的 node_id 分别设置为 10001, 10002, 10003
vi /opt/3fs/etc/storage_main_app.toml
node_id = 10001
# 修改配置文件 storage_main_app.toml [结束]


# 修改配置文件 storage_main_launcher.toml [开始]
vi /opt/3fs/etc/storage_main_launcher.toml
cluster_id = 'stage'

[mgmtd_client]
mgmtd_server_addresses = ["RDMA://10.10.10.1:8000"]
# 修改配置文件 storage_main_launcher.toml [结束]


# 修改配置文件 storage_main.toml [开始]
vi /opt/3fs/etc/storage_main.toml
[common.monitor.reporters.monitor_collector]
remote_ip = "10.10.10.1:10000"

# 由于我的测试环境内核版本低于 5.1，因此无法使用 io_uring 特性
[server.aio_read_worker]
enable_io_uring = false

# 由于 mgmtd 和 storage 混部，所以会导致监听端口冲突，这里需要修改 storage 监听端口
[server.base.groups.listener]
listen_port = 8800

# 由于 mgmtd 和 storage 混部，所以会导致监听端口冲突，这里需要修改 storage 监听端口
[server.base.groups.listener]
listen_port = 9900

[server.mgmtd]
mgmtd_server_addresses = ["RDMA://10.10.10.1:8000"]

[server.targets]
target_paths = ["/storage/data1/3fs","/storage/data2/3fs",]
# 修改配置文件 storage_main.toml [结束]

# 调整 fs 配置
cat /proc/sys/fs/aio-max-nr
sysctl -w fs.aio-max-nr=67108864

# 格式化并挂载硬盘
mkdir -p /storage/data{1..2}
wipefs -a /dev/sdc
wipefs -a /dev/sdd
dd if=/dev/zero of=/dev/sdc bs=1M count=100
dd if=/dev/zero of=/dev/sdd bs=1M count=100
mkfs.xfs -L data1 /dev/sdc
mkfs.xfs -L data2 /dev/sdd
mount -o noatime,nodiratime -L data1 /storage/data1
mount -o noatime,nodiratime -L data2 /storage/data2

# 创建数据目录
mkdir -p /storage/data{1..2}/3fs

# 上传 storage 配置
/opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' "set-config --type STORAGE --file /opt/3fs/etc/storage_main.toml"

# 启动服务
systemctl start storage_main
systemctl status storage_main

# 查看存储服务
/opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' "list-nodes"

# 查看存储目录数据
ls -al /storage/data1/3fs/
ls -al /storage/data1/3fs/engine/

相关输出信息:

[root@host01 data]# /opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' "set-config --type STORAGE --file /opt/3fs/etc/storage_main.toml"
> Execute set-config --type STORAGE --file /opt/3fs/etc/storage_main.toml
Succeed
ConfigVersion  1
> Time: 166ms 577us 72ns

[root@host02 data]# /opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' "set-config --type STORAGE --file /opt/3fs/etc/storage_main.toml"
> Execute set-config --type STORAGE --file /opt/3fs/etc/storage_main.toml
Succeed
ConfigVersion  2
> Time: 366ms 424us 627ns

[root@host03 data]# /opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' "set-config --type STORAGE --file /opt/3fs/etc/storage_main.toml"
> Execute set-config --type STORAGE --file /opt/3fs/etc/storage_main.toml
Succeed
ConfigVersion  3
> Time: 393ms 313us 534ns

4.6、配置存储拓扑

以下操作仅在任意一台机器上执行即可。

相关命令:

# 创建管理员用户
/opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' "user-add --root --admin 0 root"

# 保存 token 到 /opt/3fs/etc/token.txt
echo "AAB8Mv7T8QC4wbtj2wCvb6vx" > /opt/3fs/etc/token.txt
cat /opt/3fs/etc/token.txt

# 安装 Pyomo 和 HiGHS 所依赖的环境
pip3.8 install -r /root/3fs/3FS/deploy/data_placement/requirements.txt

# 生成数据放置方案
# 注意: --num_nodes 和 --replication_factor 的某些组合可能无法生成方案
python3.8 /root/3fs/3FS/deploy/data_placement/src/model/data_placement.py \
          -ql -relax -type CR --num_nodes 3 --replication_factor 3 --min_targets_per_disk 3

# 生成存储目标和链表
# output 目录中将生成以下 3 个文件: create_target_cmd.txt 、 generated_chains.csv 和 generated_chain_table.csv 。
#
# 参数解释:
#   node_id_begin 和 node_id_end 表示起始 storage 的 node_id
#   num_disks_per_node 表示每个 node 上硬盘的数量
#   num_targets_per_disk 表示每块硬盘上存储 target 的数量
python3.8 /root/3fs/3FS/deploy/data_placement/src/setup/gen_chain_table.py \
          --chain_table_type CR \
          --node_id_begin 10001 \
          --node_id_end 10003 \
          --num_disks_per_node 2 \
          --num_targets_per_disk 3 \
          --target_id_prefix 1 \
          --chain_id_prefix 9 \
          --incidence_matrix_path output/DataPlacementModel-v_3-b_3-r_3-k_3-λ_2-lb_1-ub_1/incidence_matrix.pickle

# 创建 target
/opt/3fs/bin/admin_cli --cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' \
                       --config.user_info.token $(<"/opt/3fs/etc/token.txt") < output/create_target_cmd.txt

# 创建 chains
/opt/3fs/bin/admin_cli --cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' \
                       --config.user_info.token $(<"/opt/3fs/etc/token.txt") "upload-chains output/generated_chains.csv"

# 创建 chain table
/opt/3fs/bin/admin_cli --cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' \
                       --config.user_info.token $(<"/opt/3fs/etc/token.txt") "upload-chain-table --desc stage 1 output/generated_chain_table.csv"

# 查看配置
/opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' "list-targets"
/opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' "list-chains"
/opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' "list-chain-tables"

相关输出信息:

[root@host01 data]# /opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' "user-add --root --admin 0 root"
> Execute user-add --root --admin 0 root
Uid                0
Name               root
Token              AACHi58S8QA8c9hP2wAOFNel(Expired at N/A)
IsRootUser         true
IsAdmin            true
Gid                0
SupplementaryGids
> Time: 13ms 237us 420ns

4.7、客户端挂载使用

相关命令:

# 初始化本机运行目录和文件
mkdir -p /opt/3fs/{bin,etc} /var/log/3fs
cp /root/3fs/3FS/build/bin/hf3fs_fuse_main /opt/3fs/bin
cp /root/3fs/3FS/configs/{hf3fs_fuse_main_launcher.toml,hf3fs_fuse_main.toml,hf3fs_fuse_main_app.toml} /opt/3fs/etc
cp /root/3fs/3FS/deploy/systemd/hf3fs_fuse_main.service /usr/lib/systemd/system

# 保存 token 到 /opt/3fs/etc/token.txt
echo "AAB8Mv7T8QC4wbtj2wCvb6vx" > /opt/3fs/etc/token.txt
cat /opt/3fs/etc/token.txt

# 修改配置文件
# 修改配置文件 hf3fs_fuse_main_launcher.toml [开始]
vi /opt/3fs/etc/hf3fs_fuse_main_launcher.toml
cluster_id = 'stage'
mountpoint = '/3fs/stage'
token_file = '/opt/3fs/etc/token.txt'

[ib_devices]
device_filter = ['rxe0']

[mgmtd_client]
mgmtd_server_addresses = ["RDMA://10.10.10.1:8000"]
# 修改配置文件 hf3fs_fuse_main_launcher.toml [结束]


# 修改配置文件 hf3fs_fuse_main.toml [开始]
vi /opt/3fs/etc/hf3fs_fuse_main.toml
[common.monitor.reporters.monitor_collector]
remote_ip = '10.10.10.1:10000'

[mgmtd]
mgmtd_server_addresses = ["RDMA://10.10.10.1:8000"]
# 修改配置文件 hf3fs_fuse_main.toml [结束]


# 应用 fuse client 配置
/opt/3fs/bin/admin_cli -cfg /opt/3fs/etc/admin_cli.toml --config.mgmtd_client.mgmtd_server_addresses '["RDMA://10.10.10.1:8000"]' "set-config --type FUSE --file /opt/3fs/etc/hf3fs_fuse_main.toml"


# 挂载客户端
mkdir -p /3fs/stage
systemctl start hf3fs_fuse_main
systemctl status hf3fs_fuse_main
mount | grep '/3fs/stage'

五、集群监控

目前 3FS 的监控指标数据存储在 clickHouse 中，我们可以使用 Grafana 来查询展示对应的监控指标数据。为此我整理了大量的监控指标面板数据并将其共享到了 Grafana Dashboards 中，你可以在 grafana/dashboard/3fs 查询并获取对应的面板信息。

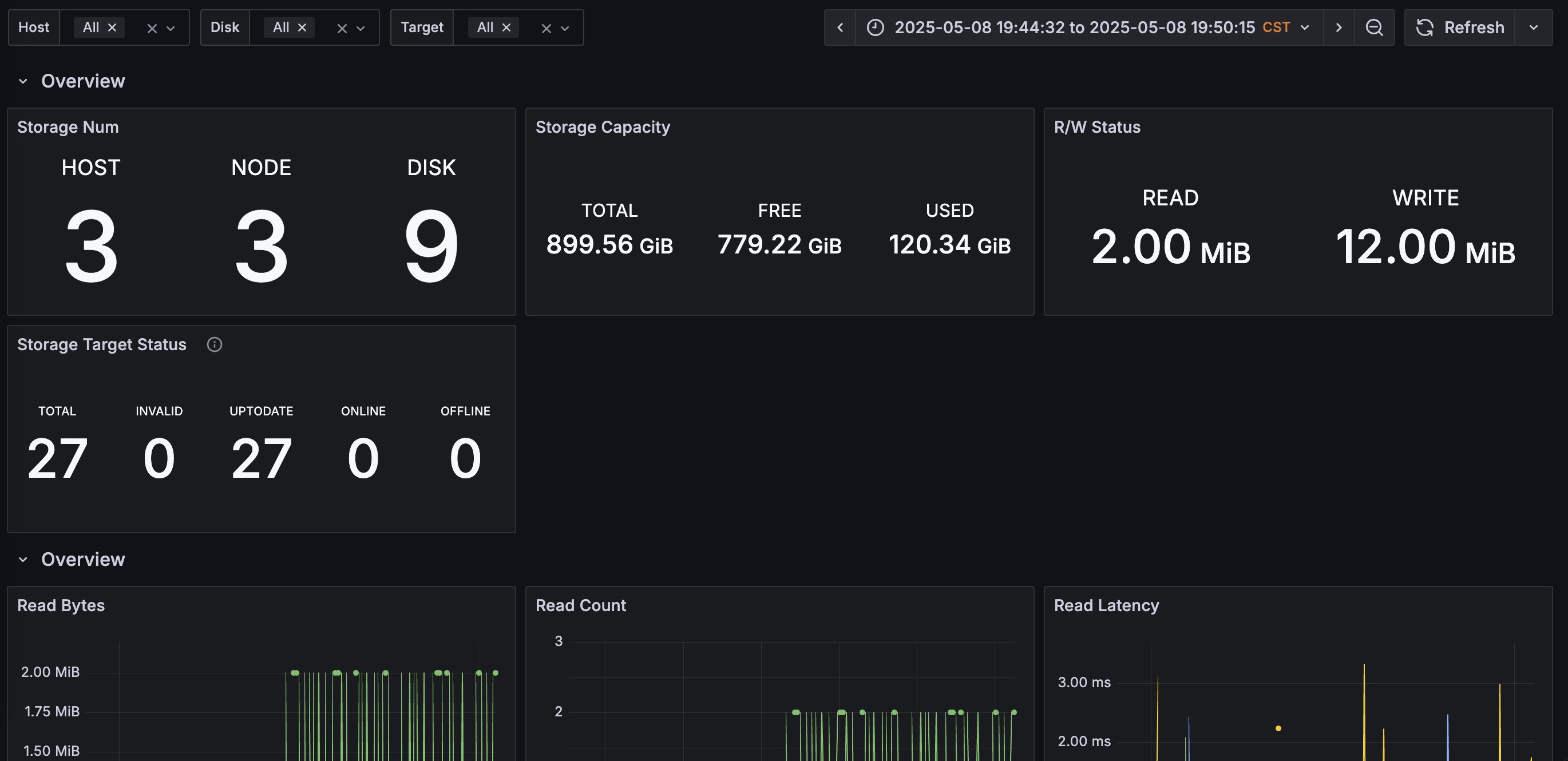

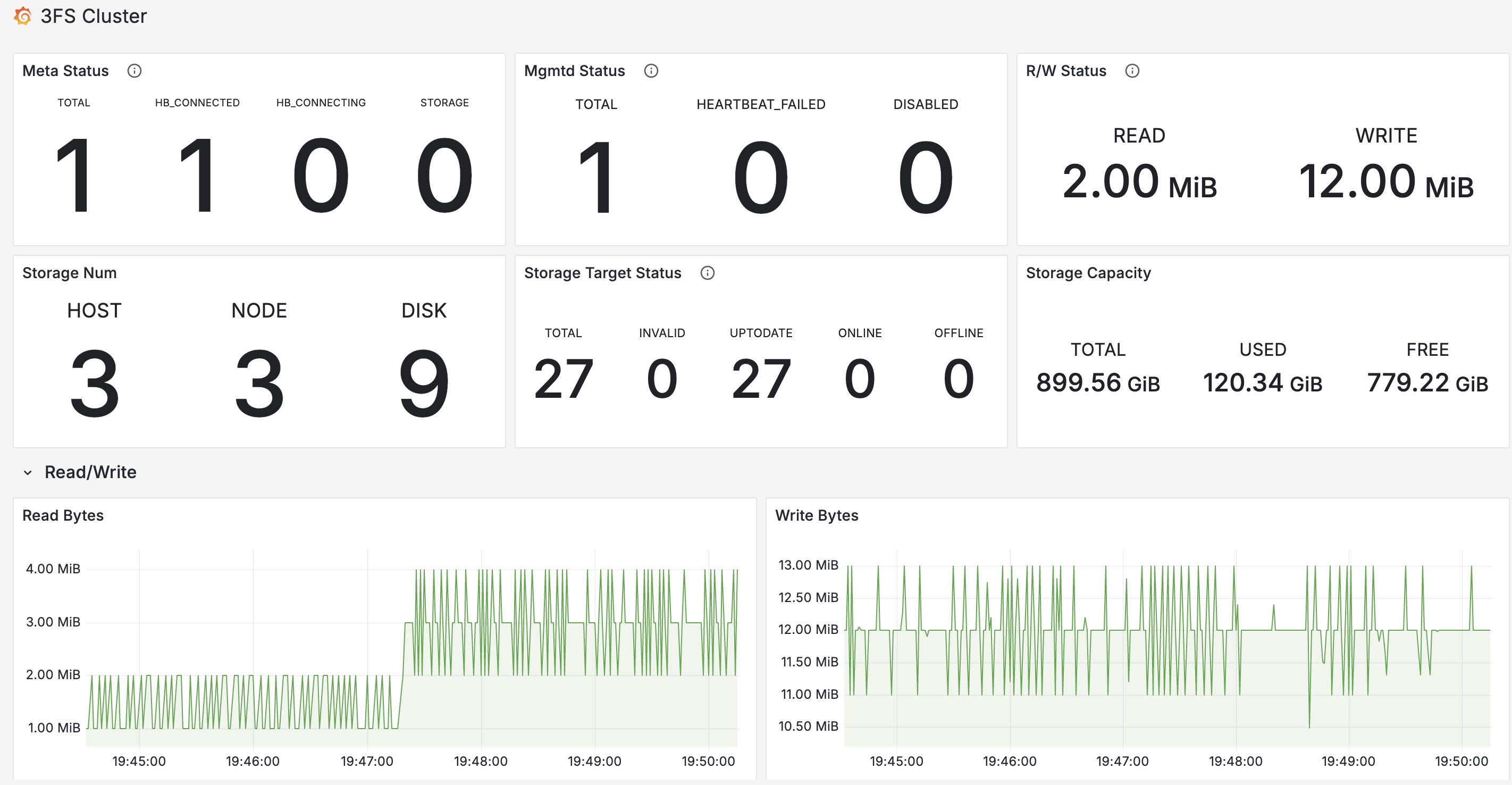

以下仅列出部分监控面板。

六、参考资料

• https://github.com/deepseek-ai/3FS/blob/ee9a5cee0a85c64f4797bf380257350ca1becd36/deploy/README.md
